Wedge Wire Candle Filter Elements: A Key Component in Industrial Solid-Liquid Separation

Wedge Wire Candle Filter Elements: A Key Component in Industrial Solid-Liquid Separation

In numerous industrial sectors such as chemical processing, water treatment, and food and beverage production, solid-liquid separation is an indispensable part of the manufacturing process. Wedge wire candle filter elements, as an efficient and durable filtration component, play a vital role in various demanding operating conditions due to their unique structural design and material advantages.

Product Structure Characteristics

Wedge Wire Candle Filter Elements, Cartridges, and Cylinders: Efficient, Durable, and High-Performance Filtration Solutions for Demanding Industrial Environments

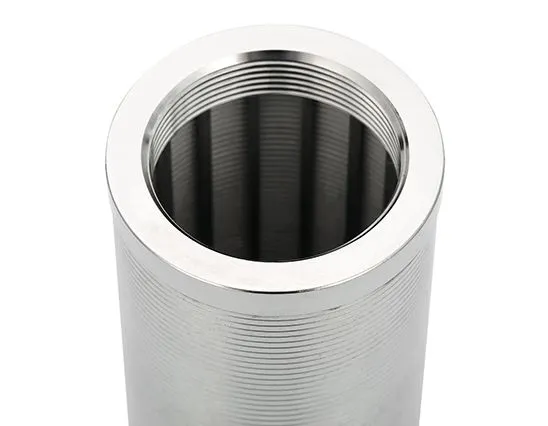

Wedge wire candle filter elements are manufactured from high-quality stainless steel 304 or 316L, offering exceptional corrosion resistance, high mechanical strength, and reliable performance in high-temperature and high-pressure environments. The core structure involves winding and welding V-shaped (wedge) wire onto longitudinal support rods, creating continuous and precisely controlled slots.

This V-shaped design creates a slot that narrows on the outer surface and widens inward. As fluid flows from outside to inside, particles are retained on the outer surface while liquid passes through smoothly. This structure not only achieves precise particle retention but also prevents particles from becoming lodged in the slots, facilitating easy backwashing and regeneration, thereby extending the service life of the filter element.

Whether used as an independent filtration unit, integrated into multi-element filter vessels, or operated in radial or axial flow configurations, wedge wire candle filters deliver consistent filtration quality and long-term reliability.

Performance Advantages

• Precision Filtration: The V-wire structure ensures accurate particle retention capabilities with resistance to clogging.

• High Mechanical Strength: The all-welded stainless steel construction withstands high differential pressure, thermal shock, and corrosive fluids.

• Low Flow Resistance Design: High effective filtration area enables large flow rates with minimal pressure loss.

• Easy Regeneration: Fully backwashable and reusable design reduces maintenance frequency and operational costs.

• Flexible Configuration: Adaptable to various filtration equipment, supporting both radial and axial flow patterns.

Typical Application Areas

Wedge wire candle filter elements are widely used in solid-liquid separation processes across the following industries:

• Water Treatment: Removal of suspended solids in tertiary filtration, pre-filtration, and other stages.

• Oil and Gas: Filtration of solid contaminants from fuels, lubricants, and process fluids.

• Chemical Industry: Critical roles in solvent purification, catalyst protection, and other applications.

• Pharmaceutical and Food: Meeting hygienic requirements for precision filtration of syrups, juices, pharmaceutical liquids, and more.

• Coatings and Resins: Removal of gel particles and oversized impurities to ensure product consistency.

Due to their backwashable and reusable nature, these filter elements effectively reduce maintenance costs and improve production efficiency during long-term operation.

Customization Options

In practical applications, filtration requirements often vary significantly. As a specialized manufacturer of filtration components, we provide customized solutions based on customers' specific operating conditions. Each wedge wire filter cartridge or element can be adjusted according to the following parameters:

• Slot Sizes: Ranging from 20 microns to 3 millimeters to meet different filtration accuracy requirements.

• Dimensions: Diameter, length, and end connections (flanges, threads, end caps, etc.) can all be customized.

• Material Selection: Standard materials include SS304 and SS316L; other alloys can be provided upon request.

• Structural Types: Available as candle elements, cartridges, cylinders, or Johnson screens.

Key Advantages of Customization:

• Precise matching of filtration accuracy to process requirements

• Optimized balance between filtration area and pressure drop

• Long-lasting metal structure suitable for high temperature and pressure

• Easy backwashing capability reducing consumable costs

• Seamless integration into existing filtration systems
