In the world of industrial filtration and separation, there exists an unsung but essential component—the wedge wire screen. If you work in water treatment, mining, food processing, or petrochemical industries, you've likely encountered it. But what exactly is it, and why has it become the preferred choice for engineers working in demanding conditions? This article provides a comprehensive overview.

What Is a Wedge Wire Screen?

A wedge wire screen, also known as a V-wire screen, profile wire screen, or Johnson screen, is a precision-engineered metal filtration component manufactured using resistance welding technology.

Its structure is uniquely designed: V-shaped profile wires are welded onto longitudinal support rods, creating continuous, precisely controlled slot openings.

Key Technical Specifications:

• Slot Size Range: 0.05 mm – 5 mm

• Open Area: Typically 20% – 60%

• Common Materials: 304, 316, 316L, duplex stainless steel

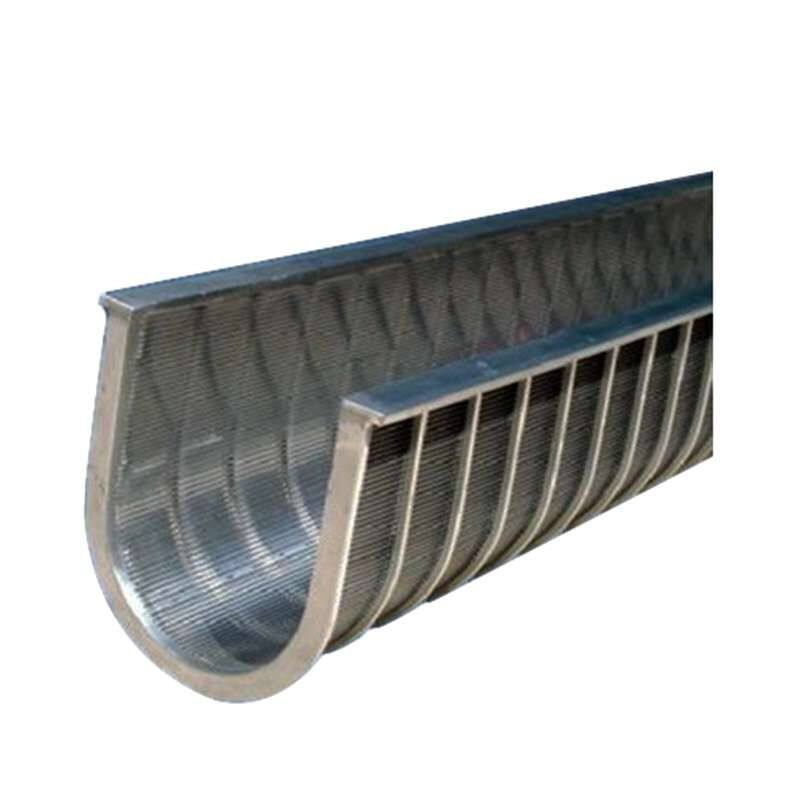

• Configurations: Panels, cylinders, baskets, sieve bends, drum screens

The most critical design feature is the V-shaped wire. The slot is narrower at the outer surface and widens inward—a design that effectively prevents particle wedging and enables self-cleaning.

How Does a Wedge Wire Screen Work?

The working principle is based on simple mechanical separation:

1. Inflow: Fluid or slurry flows toward the screen surface.

2. Separation: Particles larger than the slot opening are retained on the surface.

3. Passage: Smaller particles and liquid pass through the continuous slots for further processing.

Compared to traditional drilled or punched plates, this continuous slot design provides more uniform flow distribution and typically results in lower pressure drop—meaning higher filtration efficiency.

Why Do Engineers Prefer Wedge Wire Screens?

When selecting filtration media, engineers evaluate precision, durability, efficiency, and maintenance costs. Wedge wire screens excel in several key areas:

• Exceptional Filtration Accuracy
  Thanks to precision manufacturing, slot tolerances are extremely tight, ensuring consistent and predictable separation performance.

• Superior Clogging Resistance
  This is perhaps its most significant advantage. The inward-widening slot design means retained particles are less likely to become wedged, while backwashing effectively dislodges any accumulated solids—preventing screen blinding.

• High Mechanical Strength
  The welded construction creates a robust, integrated structure capable of withstanding high pressure, vibration, and abrasion—ideal for demanding applications like vibrating screens and pressure filters.

• Efficient Flow Capacity
  Compared to perforated plates, wedge wire screens achieve higher open area. Greater flow area means higher processing capacity and potentially lower pumping energy consumption.

• Excellent Corrosion Resistance
  Constructed from high-quality stainless steel, these screens deliver long service life in municipal wastewater, desalination, food contact, and various corrosive environments.

Wedge Wire Screen vs. Perforated Plate vs. Woven Mesh

To better understand its advantages, let's compare wedge wire screens with two other common screening media:

As the comparison shows, for applications requiring both filtration precision and long-term reliability, wedge wire screens often deliver superior performance.

Typical Applications

With its outstanding performance, wedge wire screens are widely used in:

• Water Treatment: Intake filter elements, support grids for activated carbon filters, underdrain systems for ion exchangers.

• Mining & Minerals: Vibrating screen dewatering, coal preparation sieve bends, fine coal recovery.

• Food & Beverage: Fruit juice pressing, starch washing, wort filtration in breweries.

• Oil & Gas: Well screens for sand control, catalyst support grids in refineries.

• Chemical & Pulp: Slurry filtration, pressure vessel filter elements.

Frequently Asked Questions

1. What is the biggest advantage of a wedge wire screen?
The biggest advantage is the combination of precision slot control and high structural strength—delivering both accurate separation and long-lasting durability.

2. Is it always better than perforated plate?
It depends on the application. In scenarios requiring clog resistance, precise separation, and longer service life, wedge wire screens typically perform better.

3. How do I select the right slot size?
Slot size should be determined based on the particle size distribution of your material. Typically, the selected slot should be slightly smaller than the smallest particle that must be retained.

4. Can it handle high pressure?
Yes. The welded support rod structure provides excellent pressure resistance, enabling reliable operation in high-differential-pressure industrial filtration systems.
